ATEX On-metal UHF RFID tag Exo HID 600

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 6m (19.7ft)
Frequency: 860-960 MHz
Chip type: IMPINJ Monza
Surface : Metallic,
Key application : Warehouse,

Have questions about this product? ☎ +358 10 20 80 750

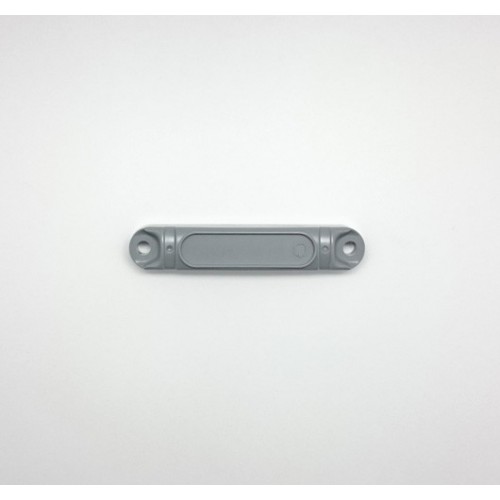

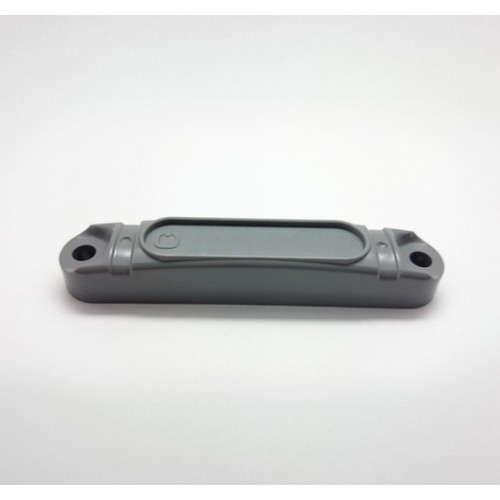

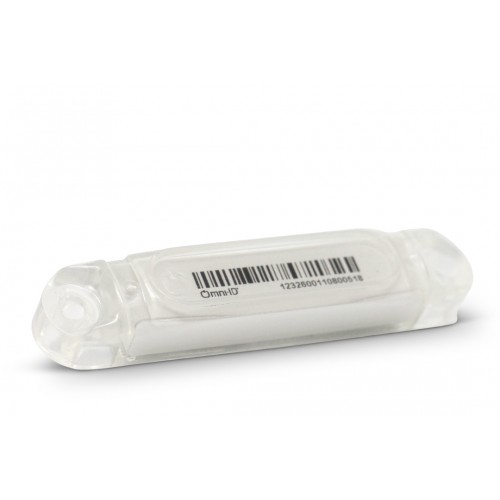

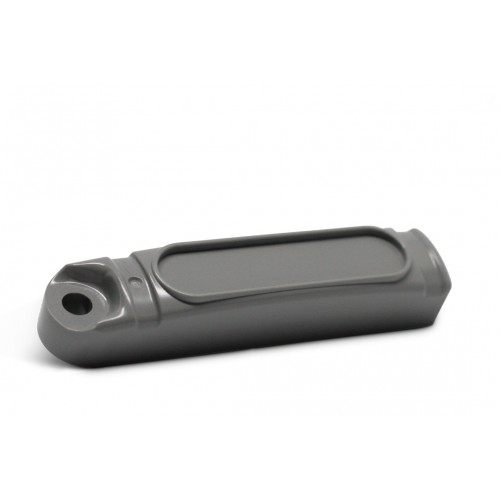

On-metal industrial RFID tag Exo 600

80 x 15 x 12.5 mm on-metal industrial RFID tag Exo 600 is a small, high performance, global RFID tag designed to meet the diverse needs of logistics industries. With a small footprint it is well suited for attachment to metal bars commonly found on RTI’s. Exo 600 has a long read range and broad read angle for industrial and warehouse portal applications and is easily mounted using rivets or closed cell foam adhesive

Applications

With a small footprint and high performance, Exo 600 is ideally suited for RTI applications in the following industries:

Logistics and Postal
Automotive
Retail and Warehousing

SPECIFICATIONS

PHYSICAL

Product:On-metal industrial RFID tag Exo 600
Material:ABS
Adhesive:Mechanical (std) Cable Tie Premium Foam (option)
Dimensions:80 x 15 x 12.5 mm / 3.15 x 0.59 x 0.48 in
Weight:12.5
Surface : Metallic,

TECHNICAL

Read Range:up to 6m (19.7ft)
Frequency:860-960 MHz
Chip type:IMPINJ Monza
Interface protocol:EPC Class 1 Gen2 ISO 18000-6C
Memory:EPC 128-bit; User 512-bit; Unique TID 48-bit
Regulatory:RoHS, CE, ATEX/IECEx (option) US&Canada

ENVIRONMENT

IP Protection:IP68
Operating temperature:-40°C to +85°C / -40°F to +185°F
Storage temperature:-40°C to +85°C / -40°F to +185°F

PERSONALIZATION

Pre-encoding:Customer specific encoding of EPC

DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.

Samples & Price Request

Leave your request and our consultant will contact you within 24 hours to assist you in your choice. As a result you will receive an offer with price, production and delivery time, as well as availability of samples for testing.

Production

After the approval of commercial offer, we will start manufacturing process, this usually takes 10-20 working days, depending on product type and order volumes. If the products are available in stock they will be delivered within 3-5 working days.

Quality & Environment

We are environment friendly and quality conscious manufacturer. Our products comply with CE, RoHS, ISO9001, FCC, ATEX/IECEx, ISED.

Order Delivery

We will deliver your order with a courier right to your door (or by any other means of choice) during 4-5 working days after completion of manufacturing process.
