On-metal Durable NFC label tag 25-30mm / NXP NTAG213

Request unit price

We react on your
request in 24 hours

Shipping
worldwide

Printing &
encoding

Read Range: up to 10cm
Frequency: 13.56 MHz
Chip type: NTAG®
Surface : Metallic,
Key application : Electronics, Asset Tracking,

Have questions about this product? ☎ +358 10 20 80 750

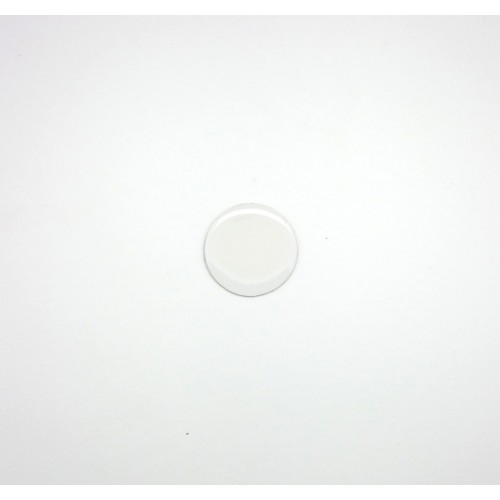

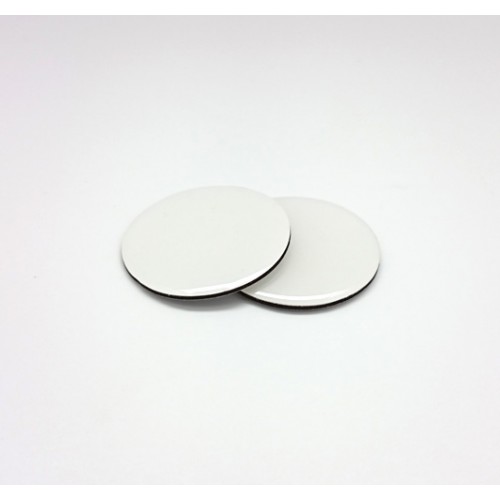

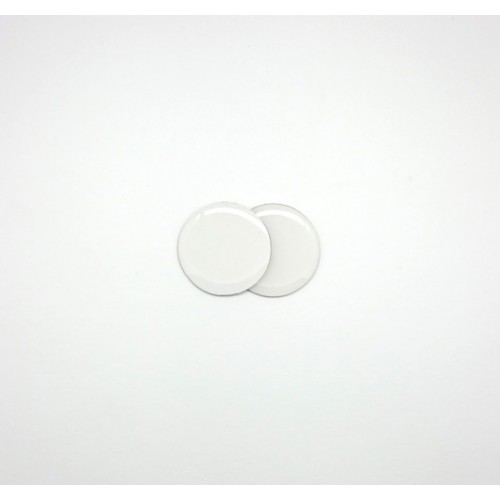

Flexible On-metal Durable NFC label tag 25-30mm NXP NTAG213

On-metal Durable NFC label tag NXP NTAG213 is a passive 13.56MHz (ISO/IEC 14443-A) industrial NFC label designed for indoor and outdoor NFC applications, equipped with NXP NTAG213 chip. The on-metal NFC label available in sizes 25mm-30mm. The NFC label is finished with a transparent epoxy material for tag and printing protection with a high performance permanent 3M adhesive for a great fixation on various surfaces.

Applications

IT Assets Management
Equipment Management
Inventory

SPECIFICATIONS

PHYSICAL

Product:On-metal Durable NFC label tag 25-30mm / NXP NTAG213
Material:PET
Adhesive:3M high performance permanent adhesive
Dimensions:round 25 mm (30 mm optional)
Weight:3.8
Surface : Metallic,

TECHNICAL

Read Range:up to 10cm
Frequency:13.56 MHz
Chip type:NTAG®
Interface protocol:ISO/IEC 14443-A
Memory:180 bytes EEPROM, organized in 45 pages of 4 bytes (144 bytes user R/W area)
Data storage time:Up to 10 years
Additional:Optional microchips: NTAG215, NTAG216, Mifare 1K Classic, Ultralight, I-code SLIX

ENVIRONMENT

Operating temperature:-25°C to +75°C (survival temp. -40°C to +100°C)
Storage temperature:-25°C to +75°C

PERSONALIZATION

Customized printing:Customer specific layout including logo & text
Pre-encoding:Customer specific encoding

DELIVERY

We will deliver your order with a courier right to your door (or by any other means of choice) during 1-2 days after manufacturing. Well-established logistics system allows us to ship the products the very next day after the receipt of the application.

GUARANTEE

Depending on product the warranty and lifetime support period for the products is up to 2 years. The warranty of reliable operation at any condition is provided by timely technical support and qualified service.

Samples & Price Request

Leave your request and our consultant will contact you within 24 hours to assist you in your choice. As a result you will receive an offer with price, production and delivery time, as well as availability of samples for testing.

Production

After the approval of commercial offer, we will start manufacturing process, this usually takes 10-20 working days, depending on product type and order volumes. If the products are available in stock they will be delivered within 3-5 working days.

Quality & Environment

We are environment friendly and quality conscious manufacturer. Our products comply with CE, RoHS, ISO9001, FCC, ATEX/IECEx, ISED.
